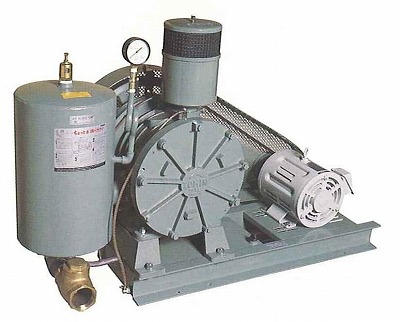

Rotary Vane Blower--HC Type
No. 1 Japanese rotary vane blower -- Four million units shipment
Achieved high efficiency of air flow with low motor capacity.11 models
are available in the HC-s Type.
“want more air without changing size or motor power of the product”, to
meet that voice, we developed this energy-saving product.
HC-s series are the best for aeration of on-site wastewater treatment and
spray device of a combustion unit.
|
- Comparing operation sound of roots blowers, generally smaller HC-s models do not need a machine room. Larger HC-s models do not need sound insulation on a machine room because of quiet operation
- Unique oiling system that features less consumption and no clogging or
leakage
- Achieved low price and low installation cost, furthermore, the energy-saving
design can also save running cost.
- Has great durability. Air pressure and flow rate will not change in a long time operation.
- Motor and blower can be separated. Therefore it is flexible for modification
to meet the requirements.
- Easy maintenance
- Aeration for on-site wastewater treatment
- Spraying for fuel oil and kerosene oil burners
- Aeration for fish farm
- Agitation in plating tanks or water tanks
- Air curtain
| Model No. |
Dia. of outlet |
Motor power |
F (Hz) |
Blower RPM |
Air flow rate (m3/min) |
Approx. weight (Kg) |
0.01
MPa |
0.02
MPa |
0.03
MPa |
0.04
MPa |
| HC-251s |
¾" |
0.4kw |
50 |
450 |
0.31 |
0.30 |
0.29 |
0.29 |
44 |
| 60 |
450 |
0.31 |
0.30 |
0.29 |
0.29 |
| HC-30s |
1" |
0.4kw |
50 |
460 |
0.36 |
0.35 |
0.34 |
0.33 |
50 |
| 60 |
460 |
0.36 |
0.35 |
0.34 |
0.33 |
| HC-301s |
1" |
0.75kw |
50 |
520 |
0.42 |
0.41 |
0.40 |
0.39 |
50 |
| 60 |
520 |
0.42 |
0.41 |
0.40 |
0.39 |
| HC-301H |
1" |
0.75kw |
50 |
650 |
0.52 |
0.51 |
0.50 |
0.49 |
50 |
| 60 |
650 |
0.52 |
0.51 |
0.50 |
0.49 |
| HC-40s |
1¼" |
0.75kw |
50 |
500 |
0.66 |
0.65 |
0.63 |
0.61 |
80 |
| 60 |
500 |
0.66 |
0.65 |
0.63 |
0.61 |
| HC-401s |
1¼" |
1.5kw |
50 |
580 |
0.80 |
0.77 |
0.74 |
0.71 |
85 |
| 60 |
580 |
0.80 |
0.77 |
0.74 |
0.71 |
| HC-50s |
1½" |
1.5kw |
50 |
430 |
1.14 |
1.12 |
1.09 |
1.06 |
120 |
| 60 |
430 |
1.14 |
1.12 |
1.09 |
1.06 |
| HC-501s |
1½" |
2.2kw |
50 |
500 |
1.44 |
1.42 |
1.39 |
1.36 |
125 |
| 60 |
500 |
1.44 |
1.42 |
1.39 |
1.36 |
| HC-60s |
2" |
2.2kw |
50 |
450 |
1.90 |
1.87 |
1.82 |
1.77 |
190 |
| 60 |
450 |
1.90 |
1.87 |
1.82 |
1.77 |
| HC-80s |
2½" |
3.7kw |
50 |
390 |
2.82 |
2.74 |
2.66 |
2.59 |
250 |
| 60 |
390 |
2.82 |
2.74 |
2.66 |
2.59 |
| HC-100s |
3" |
5.5kw |
50 |
390 |
4.32 |
4.28 |
4.25 |
4.18 |
375 |
| 60 |
390 |
4.32 |
4.28 |
4.25 |
4.18 |
| Parts name and dimensions |
| Advantages of Tohin Rotary Vane Blower |
- Compact, powerful air flowrate and yet silent operating sound
- Very little vibration and easy installation
- Strong against pressure change in a tank
- Smooth outlet by air-chamber unit
- Heavy duty to keep high performance
- Superior cost performance
Tohin rotary vane blower mainly consists of components such as Blower body
(cylinder), Motor, Air chamber, Air filter, Base (with oil tank), and Oil
dropping nozzle. This simple structure contributes very long life and trouble-free
operation.
The rotor, which has four pieces of vane moving in-and-out repeatedly,
eccentrically rotates in the cylinder to intake, compress, and discharge
air. This is the basic mechanism of the blower.
While running the machine, lubricating oil keeps circulating and continuously
supplied to the cylinder through the oil dropping joint. The oil works
not only to decrease operation sound and friction heat, but also to keep
high airtightness in the cylinder.
|
|
|
